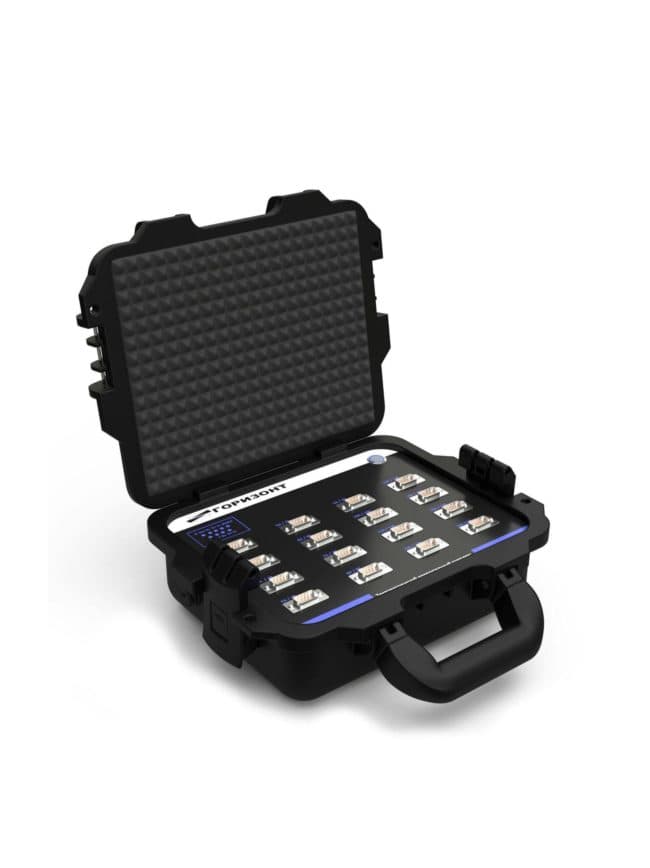

TSG-S02-8,16,32 Strain measurement station
Station with a base unit and interchangeable measurement modules. Channels can be configured for strain gauges, vibrating-wire sensors, and other input signals.
Application
Application and connection
Multichannel station for measuring bridge signals and vibrating-wire frequency. Supports full-bridge, half-bridge, and quarter-bridge circuits.
Interchangeable modules extend supported input types. Module types and channel count are selected for the sensor list and measurement configuration.
Technical documentation
Operating manual (RU)On the manufacturer’s website (RU)Parameters
Technical specifications
- Conversion ratio ranges, mV/V
- ±5, ±10
- Permissible conversion ratio error, % of span
- ±0.05
- Vibrating-wire frequency range, Hz
- 200…8000
- Number of measurement channels
- 2, 8, 16, 32
- Strain gauge bridge configurations
- Full bridge, half bridge, quarter bridge
- Maximum strain gauge cable length, m
- 100
- Output interface types
- USB, RS-485, Bluetooth
- Maximum line-of-sight wireless range, m
- 80
- Maximum power consumption, W
- 1.2
- Maximum dimensions (L × W × H), mm
- 300×255×130
Key manufacturer data is shown. Range, interfaces, and supplied components depend on the selected version.
