Level sensors

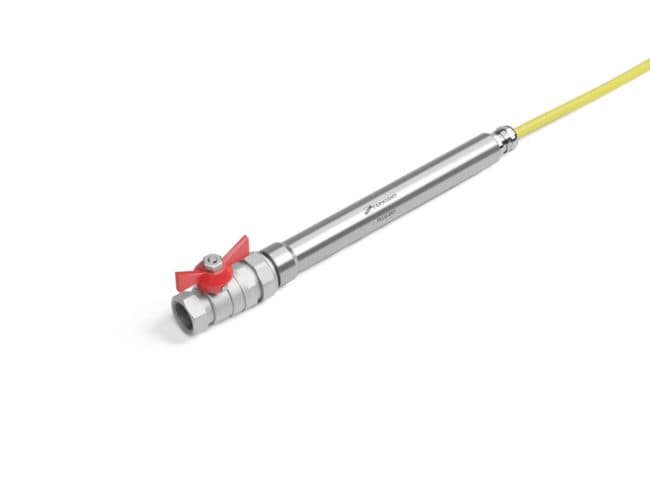

PLLG Pressure piezometer
Measures water pressure in pressurized boreholes, pipelines, and tanks. Can be incorporated into wired or wireless data acquisition systems.
Application
Application and connection
Can be equipped with a CU-LoRaWAN, CU-GPRS, CU-LTE, or CU-NBIoT module for wireless data transmission.
Used at hydraulic structures.
Technical documentation
Operating manual (RU)On the manufacturer’s website (RU)Parameters
Technical specifications
- Mounting method
- Submersion
- Gauge pressure range, bar
- 0.1/0.2/0.3/1/2
- Relative pressure range, bar
- 3/4/5/6/10/20/30
- Maximum sensor dimensions (length × diameter), mm
- 225 ×23
- Housing material
- AISI 316L stainless steel
- Operating temperature range (piezometer)
- -10…60 °C
- Operating temperature range (electronic unit)
- -45…60 °C
- Pressure error relative to full scale
- Version …-01-…: ±0.1 % Version …-05-…: ±0.5 %
Key manufacturer data is shown. Range, interfaces, and supplied components depend on the selected version.
Full manufacturer data (RU)Descriptions, specifications, and images: NTP Gorizont materials.Manufacturer resources (RU) ↗
