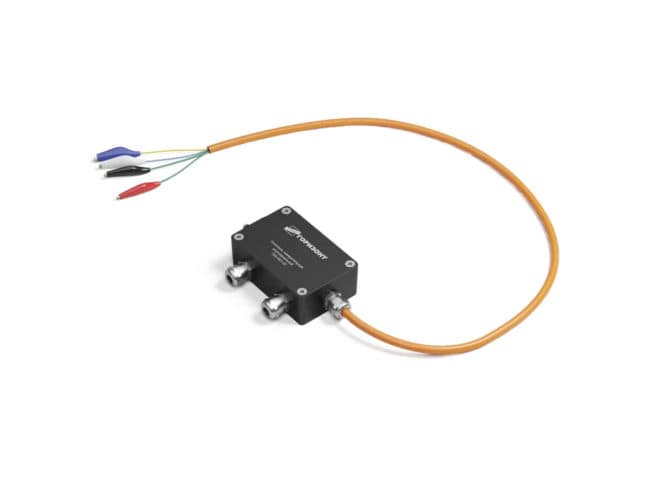

TSG-S01-2 Portable vibrating-wire readout
Portable readout for vibrating-wire sensors and thermistors. Connects to a computer or tablet over USB.
Application
Application and connection
Provides two measurement channels: wire vibration frequency and temperature from thermistors installed in the sensors. It connects to a tablet over USB and is also powered by USB, simplifying analog sensor readings.
Technical documentation
Operating manual (RU)On the manufacturer’s website (RU)Parameters
Technical specifications
- Vibrating-wire frequency range, Hz
- 200…8000
- Thermistor resistance range, Ω
- 200…400000
- Thermistor resistance error over operating temperatures, % of reading
- ±0.5
- Wire excitation voltage, V
- 3
- External interfaces
- USB
- Protection rating under GOST 14254-2015
- IP31
- Communication protocol
- Modbus
- Supply voltage, V
- USB, 5 V
- Power consumption, W
- 1
- Windows tablet
- Not included
Key manufacturer data is shown. Range, interfaces, and supplied components depend on the selected version.
Full manufacturer data (RU)Descriptions, specifications, and images: NTP Gorizont materials.Manufacturer resources (RU) ↗
