Data acquisition equipment

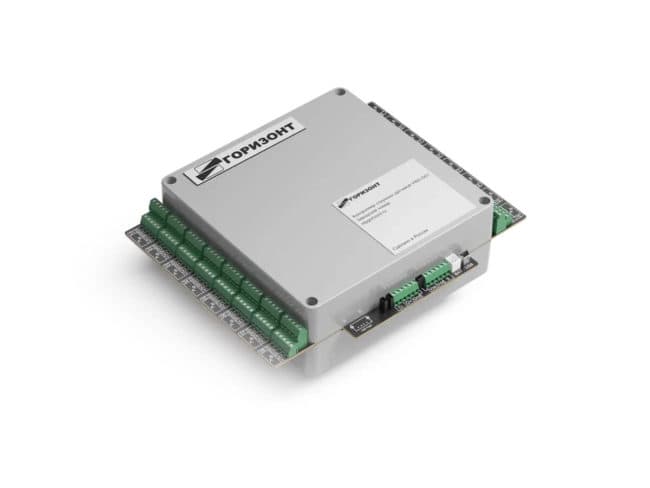

TSG-S01-VW Vibrating-wire sensor controller
Polls vibrating-wire sensors and resistance thermometers. Converts readings into data for strain and temperature monitoring systems.
Application
Application and connection
Polls vibrating-wire sensors and resistance thermometers and converts their readings for the monitoring system. Sensors connect through terminals.
Channel configuration and supported interfaces are confirmed for the selected version.
Technical documentation
Operating manual (RU)On the manufacturer’s website (RU)Parameters
Technical specifications
- Vibrating-wire operating frequency range, Hz
- 200…8000
- Resistance thermometer range, Ω
- 200-400000
- Measurement time per connected channel, ms
- 300ms
- Vibrating-wire sensor cable type
- FTP, Cat 5e, copper
- Vibrating-wire sensor connector type
- Terminal
- Dimensions, mm
- 220×175×60
- Mass, kg
- 0.4
Key manufacturer data is shown. Range, interfaces, and supplied components depend on the selected version.
Full manufacturer data (RU)Descriptions, specifications, and images: NTP Gorizont materials.Manufacturer resources (RU) ↗
