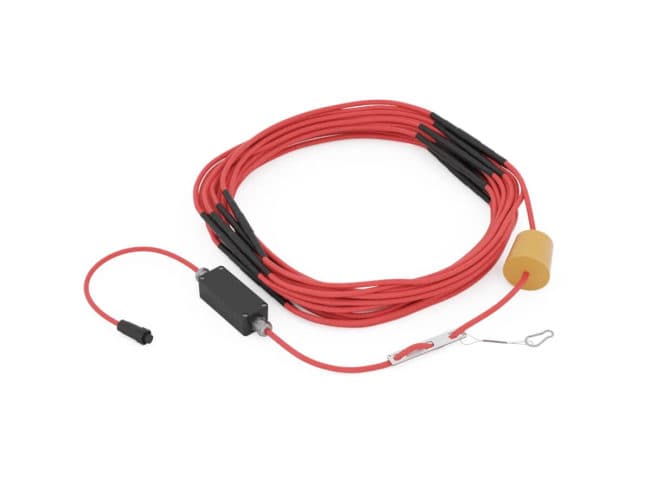

THLG-D11 RS-485 thermistor string
Measures the temperature profile of soil or structures at multiple points. Transmits readings over RS-485 / Modbus.
Application
Application and connection
Its RS-485 digital output connects multiple thermistor strings over distances up to 800 m without intermediate controllers or converters. Strings can share the line with other NTP Gorizont instruments.
An armored cable is available on request.
Technical documentation
Operating manual (RU)On the manufacturer’s website (RU)Parameters
Technical specifications
- Measurement range, °C
- -50…+85
- Readout resolution, °C
- 0.01
- Number of temperature sensors
- ≤ 250
- Temperature sensor spacing, m
- 0.5 ; 1; 2
- Digital output
- RS-485 (modbus)
- Data rate
- 9600 bit/s
- Supply voltage
- 9-28 V
- Current consumption at 24 V, mA
- 2
- Absolute error by temperature interval
- (−50; −40] °C: ±0.3 °C (−40; −10] °C: ±0.2 °C (−10; +10] °C: ±0.1 °C (+10; +85] °C: ±0.2 °C
Key manufacturer data is shown. Range, interfaces, and supplied components depend on the selected version.
Full manufacturer data (RU)Descriptions, specifications, and images: NTP Gorizont materials.Manufacturer resources (RU) ↗
