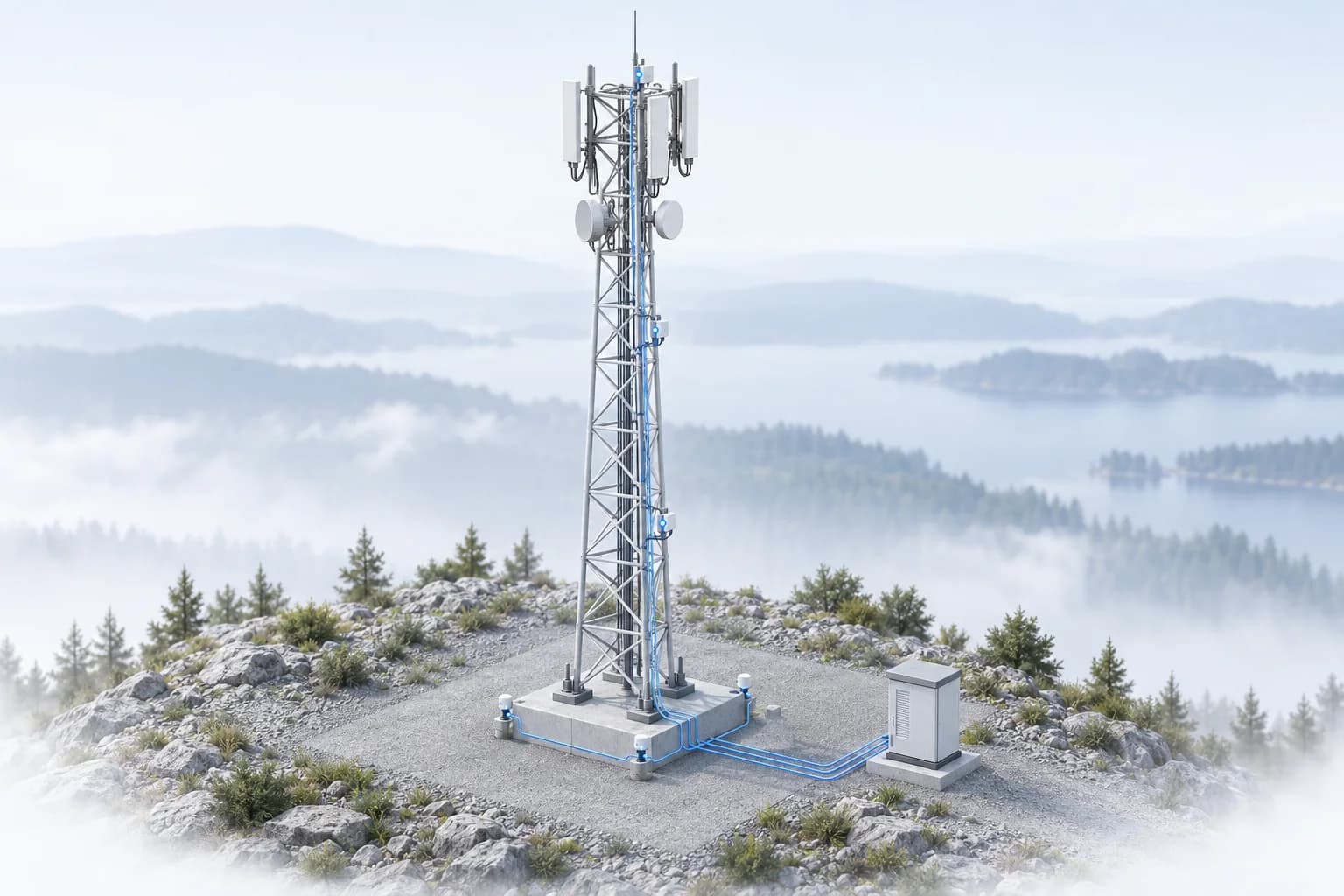

Antenna mast monitoring
Monitoring the condition and geometry of tall structures.
Discuss your facility
What we monitor
- Mast deviation from vertical
- Foundation settlement
- Natural structural vibrations
From on-site measurements to information for staff
Parameters and instrument selection depend on the structure, operating conditions, and existing systems.
On-site monitoring
We select measurement points and instruments for the changes being monitored.
Collection and transmission
We connect measurements to the shared system using the available communication and infrastructure.
Monitoring and events
We set up archives, change visualization, and alerts for responsible staff.
Purpose
Monitoring an antenna mast shows how the support position, foundation and vibration behaviour change in service. These data help assess its condition and decide when inspection or maintenance is needed.
Monitored parameters
- Deviation of the mast shaft from vertical
- Foundation settlement
- Natural vibration frequencies and mode shapes
- Unstable crosswind oscillations
Monitored assets
- Antenna mast structures
- Communication towers and masts
- Foundations of tall supports
Possible system components
The following families and instruments are examples. The final selection is defined by the project.
AccelerometersAN-Q2M Triaxial accelerometerMeasures structural vibration acceleration along three axes. Used in building and structural monitoring, including stay-cable monitoring.
TiltmetersB-IN-Q2M Beam inclinometerTracks relative movement of structural elements. Multiple beam inclinometers form a chain to monitor the profile of a tunnel, bridge, or tank wall.
TiltmetersIN-D9 Absolute inclinometerMeasures absolute tilt in applications sensitive to temperature and long-term drift. Supports self-calibration on command or on schedule.
TiltmetersMS-IN-Q2M Inclinometer chainConnects biaxial inclinometers into a measurement chain. Tracks position changes at multiple points on a structure.
Strain gaugesRSS-R Rebar stress sensorMonitors strain in reinforced-concrete reinforcement. Incorporated into the rebar cage by welding or couplings.
TiltmetersIN-Q2M Biaxial inclinometerMeasures tilt along two coordinates. Used in structural monitoring systems with RS-485 data transmission.Let’s discuss your task
Tell us about the facility, the current system, and what needs to change. We will clarify the details and suggest the next step.
